TeeJet VisiFlo TP Brass Flat Spray Tips for Sealing & Chemical Application

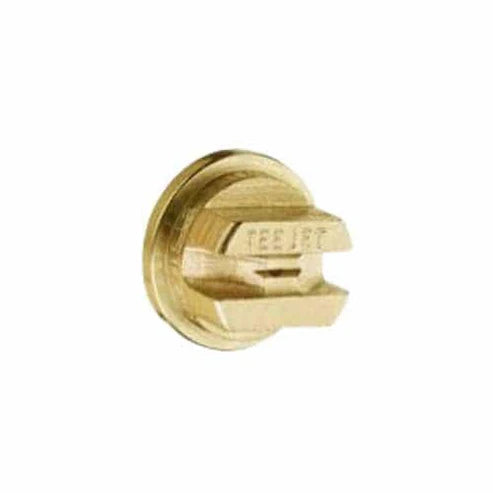

TeeJet VisiFlo Brass Flat Spray Tip TP Series

These TeeJet TP brass flat spray tips are used for sealing, chemical application, and other low-pressure spray work. Brass holds up well with sealers and many chemicals. Choose the spray angle and orifice size that matches the job.

Uniform Coverage and Easy Setup

With a 65° spray angle and recommended 30-60 PSI operating range, these nozzles provide fine-to-medium droplets and excellent overlap when spaced 20" apart at 22-24" height. Brass construction ensures longevity in demanding sealing applications—resists corrosion from sealers and chemicals. Quick to install in standard TeeJet caps/holders. Perfect for boom sprayers, wands, or handheld setups in driveway/paver sealing services.

Available Sizes

65° tips for sealing:

• TP6505 – 65° / 0.5 GPM @ 40 PSI
• TP6510 – 65° / 1.0 GPM @ 40 PSI
• TP6515 – 65° / 1.5 GPM @ 40 PSI

40° tips:

• TP4010 – 40° / 1.0 GPM @ 40 PSI
• TP4015 – 40° / 1.5 GPM @ 40 PSI
• TP4020 – 40° / 2.0 GPM @ 40 PSI

20° tip:

• TP2520 – 25° / 2.0 GPM @ 40 PSI

How These Tips Are Used

The 65° tips are a common choice for driveway and paver sealer. The 40° and 20° tips give a narrower pattern when you need a tighter band or a heavier flow. Typical operating range is about 30–60 PSI. Install in a standard TeeJet cap such as CP1325.
