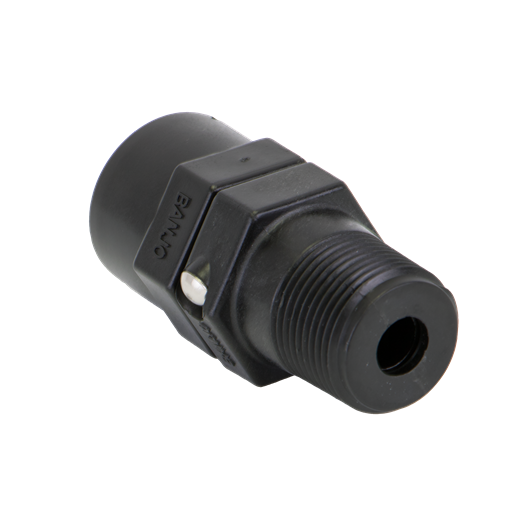

Banjo SW100 1" MNPT x 1" FNPT Poly Swivel, 150 PSI

The Banjo SW100 is a 1" male NPT x 1" female NPT swivel. It lets hose reels and rigid poly plumbing rotate without twisting the line, and is rated to 150 PSI.

Banjo fittings are molded from glass-reinforced polypropylene. They resist corrosion and stand up well to the chemicals used in soft washing, including sodium hypochlorite, surfactants and many acids. They are rated for low-pressure use, such as transfer, suction, soft wash and chemical delivery lines, and are not for the high-pressure side of a pressure washer.

Features

• Connections: 1" MNPT x 1" FNPT
• Max pressure: 150 PSI
• Glass-reinforced polypropylene
• Excellent chemical resistance

Specifications

Typical Applications

Soft wash rigs, chemical transfer and mixing, tank plumbing, pump suction lines and agricultural spraying.

Note: Use PTFE tape or a thread sealant compatible with polypropylene. Hand-tighten, then snug lightly. Over-tightening can crack poly threads.
