X-Jet & Downstream Chemical Injectors

Downstream chemical injectors

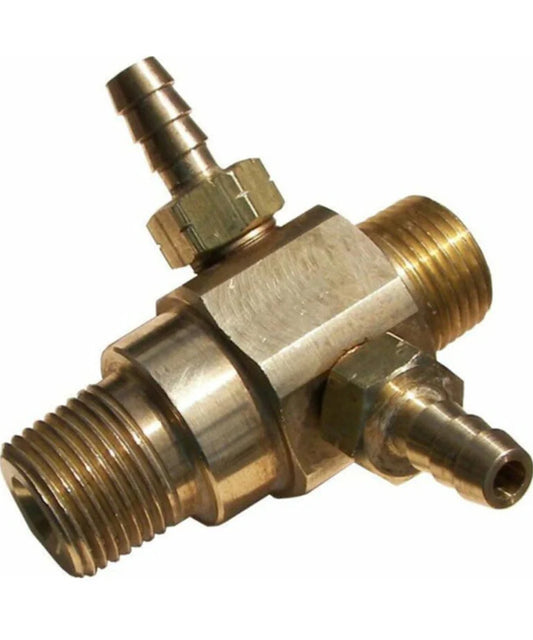

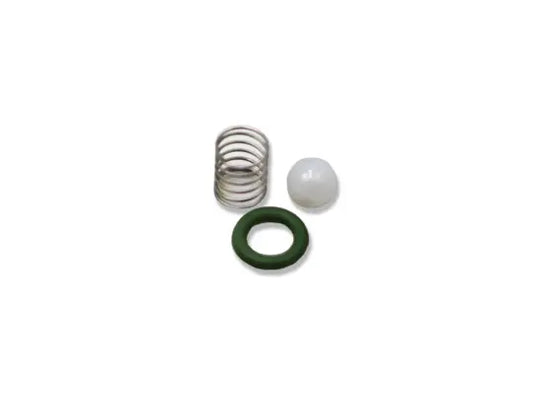

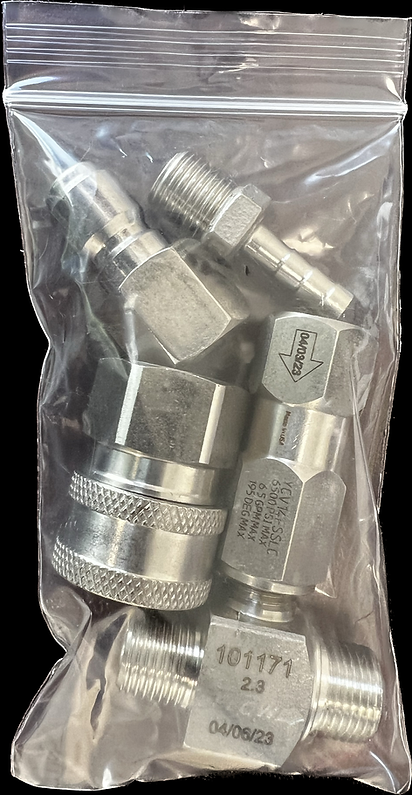

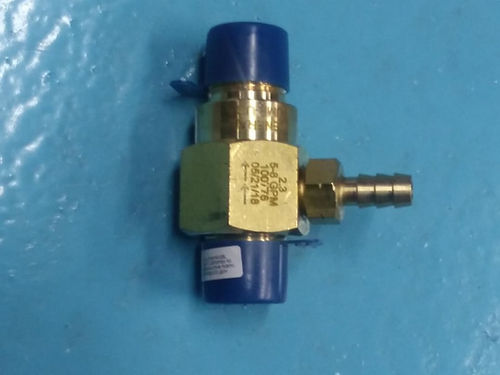

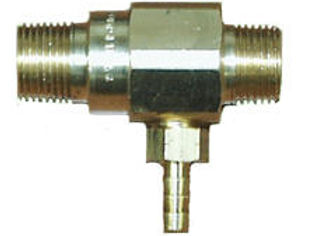

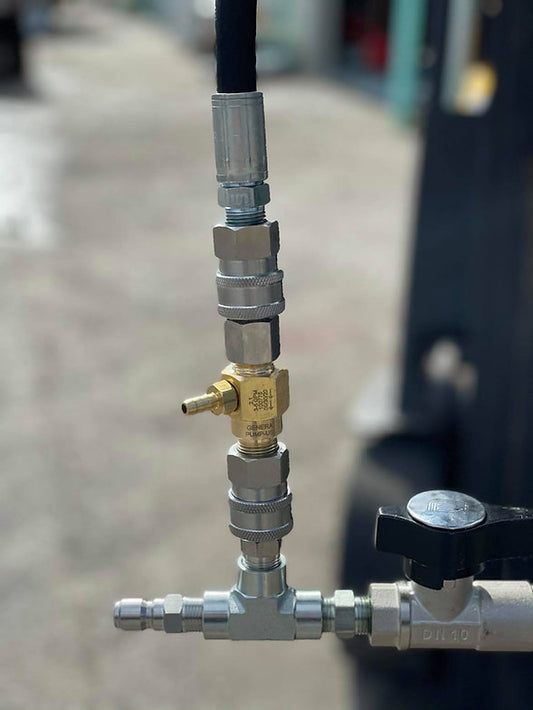

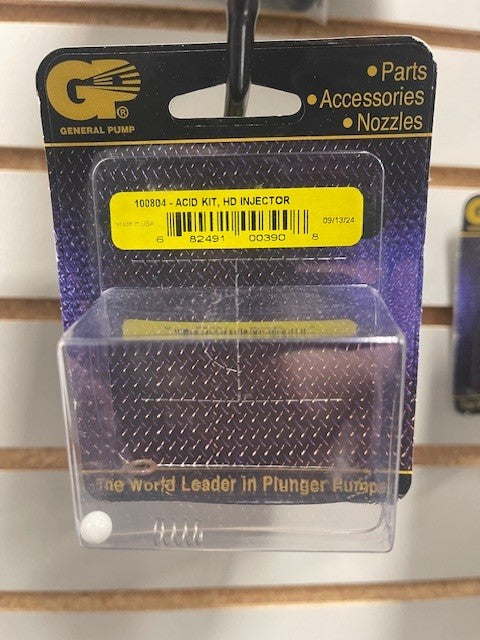

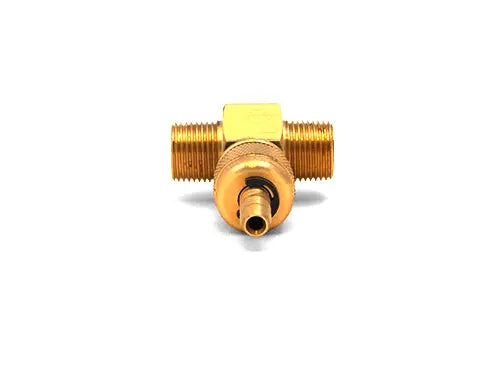

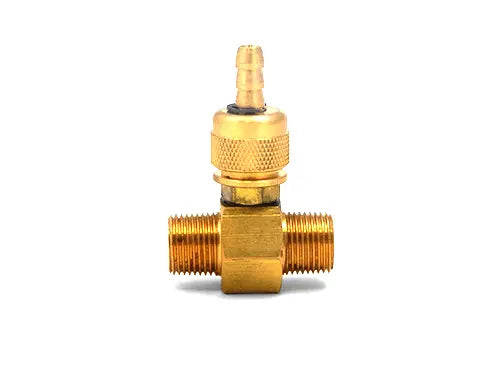

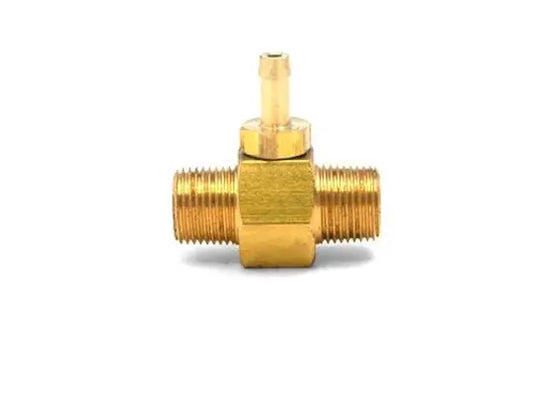

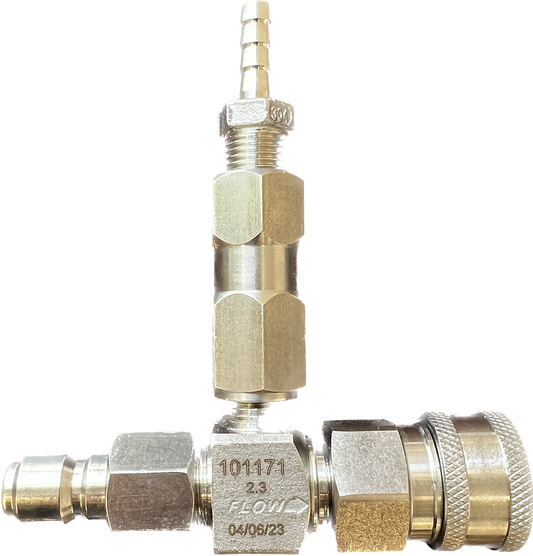

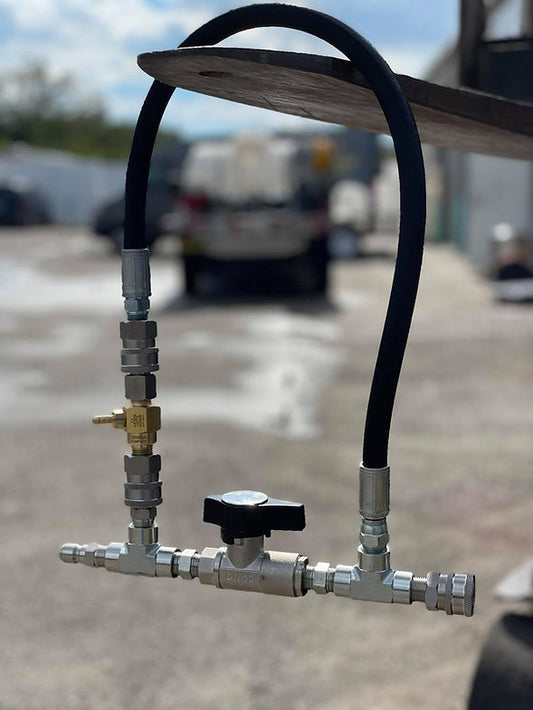

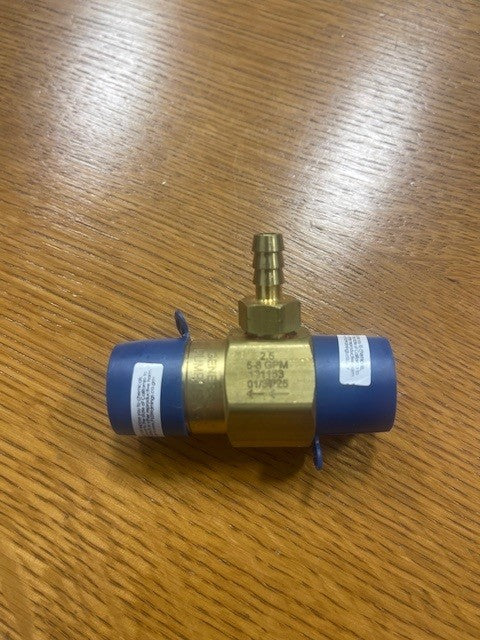

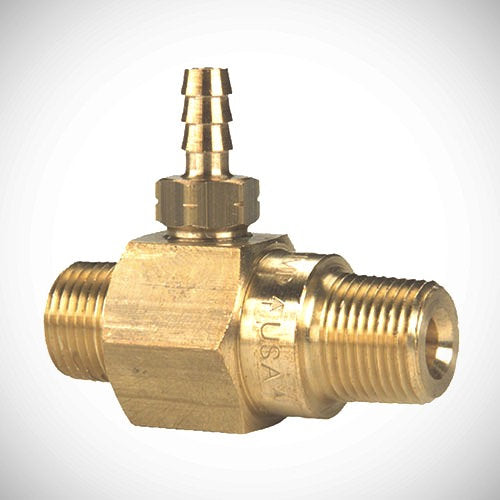

Downstream chemical injectors add detergent to the water after the high-pressure pump, so chemical never runs through your pump. The venturi effect pulls chemical into the water stream as it flows through the injector. You apply it at low pressure, then switch back to high pressure to rinse. We carry General Pump fixed, adjustable and dual-port injectors, MTM Hydro acid injectors, Veloci adjustable injectors, and repair kits, check valves and bypass kits.

X-Jet M5 end-of-line injection systems

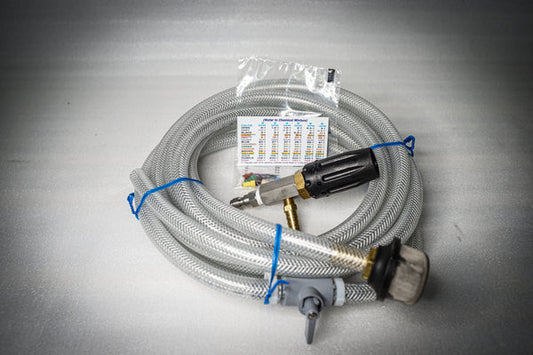

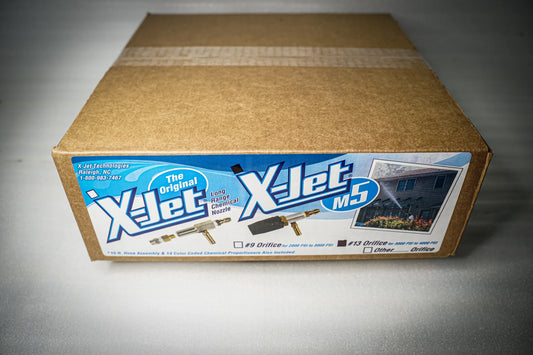

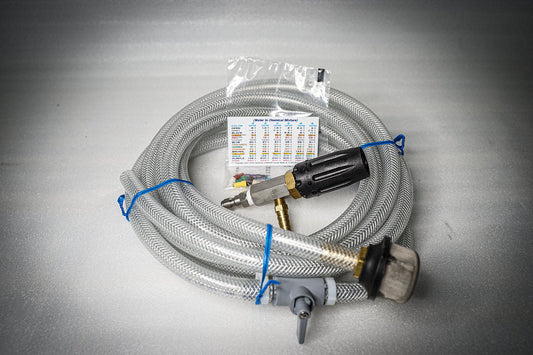

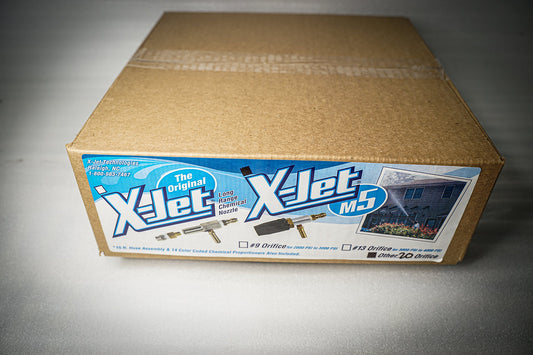

The X-Jet M5 mixes chemical at the nozzle, so detergent never runs through your pump, hose or gun. Twist the nozzle to change the pattern from 5° to 60°. Check each listing for kit contents. The #13 and #20 kits, for example, include a 15 ft suction hose, color-coded proportioner tips for 14 chemical ratios, and a shut-off ball valve with a quick-connect plug. Pick the orifice that matches your machine's flow:

X-Jet M5 orifice Machine flow
#9 3–3.5 GPM
#13 4–4.5 GPM
#16 5–6.5 GPM
#20 7–8 GPM
#25 8.5+ GPM

For downstream soft washing with an X-Jet nozzle, see the X-Jet M5 DS Twist nozzles (3–7 GPM and 7–12 GPM) under Nozzles & Tips. For soft wash proportioners and metering valves, see Soft Wash Proportioners.

20 products
