Boyd Welding 11 Gallon Aluminum Fuel Tank, 18" x 12" x 12", 11010
Boyd Welding 11 Gallon Aluminum Fuel Tank, 18" x 12" x 12", 11010
SKU:11010
Couldn't load pickup availability
Product Variation Notice
Product images, specifications, components, colors and packaging are provided for reference and may change without notice due to manufacturer updates or substitutions. The item you receive may differ slightly from the photos or description. Questions? Call us at 352-571-4654.

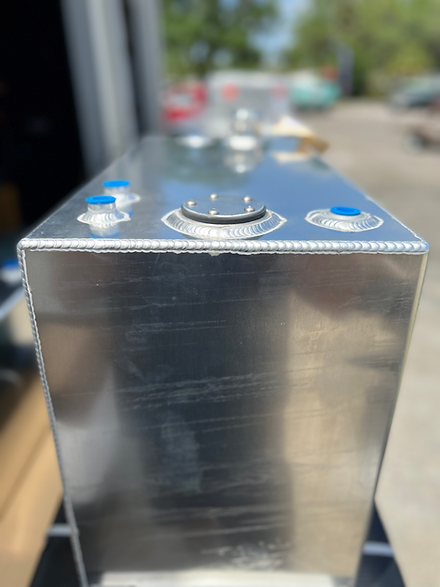

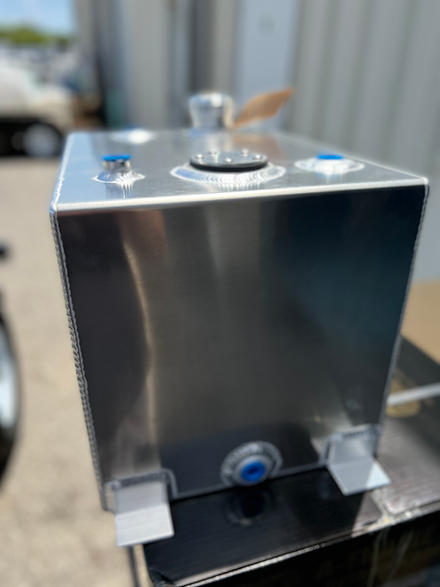

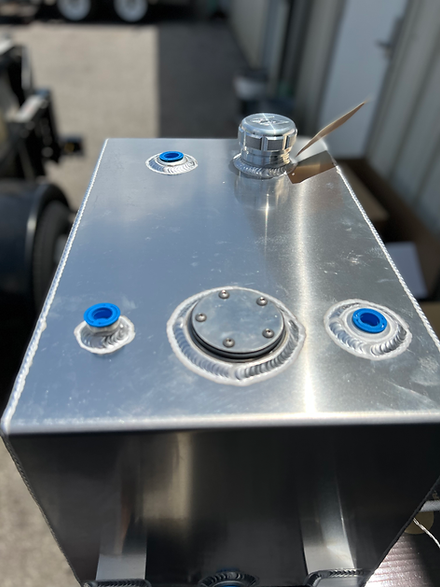

This Boyd Welding 11 gallon aluminum fuel tank (SKU 11010) is built from 1/8" 5052 aluminum for pressure washer and soft wash rigs that need more fuel than a stock engine tank. It comes with one pickup tube installed and NPT ports for the return, drain and vent.
Features
- 1/8" (0.125") 5052 aluminum, mill finish, unbaffled
- One pickup tube installed (1/4" Sch 40 aluminum) in a 3/8" NPT port
- 3/8" NPT return and 3/8" NPT drain ports
- 1/2" NPT vent port
- 2" fill with cap
- 5-bolt SAE sender flange
- Four slotted mounting tabs for 3/8" hardware
Specifications
| Brand | Boyd Welding |
|---|---|
| SKU | 11010 |
| Capacity | 11 gallons |
| Tank dimensions | 18" L x 12" W x 12" H |
| Footprint | 21" x 12" (with mounting tabs) |
| Height with cap | 14.5" max |
| Pickup | 3/8" NPT (1/4" pickup tube installed) |
| Return / Drain | 3/8" NPT / 3/8" NPT |
| Vent | 1/2" NPT |
| Material | 5052 aluminum, 1/8" |
| Fuel | Gasoline or diesel |
Fittings, plugs and fuel line are not included. The tank must be vented. Start aluminum threads by hand and use thread sealant.
