Brass High-Pressure Check Valve, 5800 PSI, 3/8" or 1/2" FNPT
Brass High-Pressure Check Valve, 5800 PSI, 3/8" or 1/2" FNPT
SKU:CV3-40038
Couldn't load pickup availability
Product Variation Notice
Product images, specifications, components, colors and packaging are provided for reference and may change without notice due to manufacturer updates or substitutions. The item you receive may differ slightly from the photos or description. Questions? Call us at 352-571-4654.

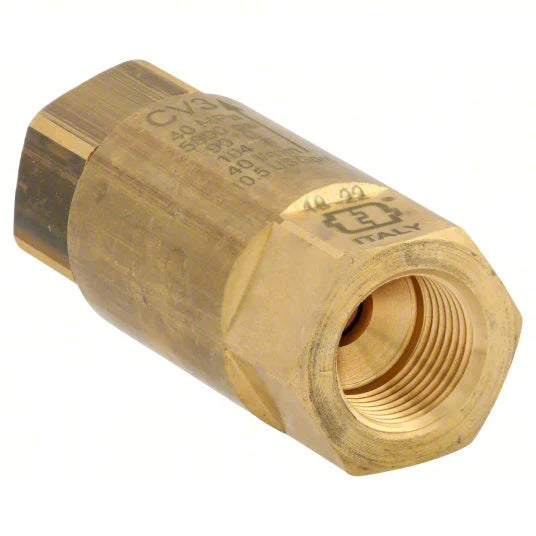

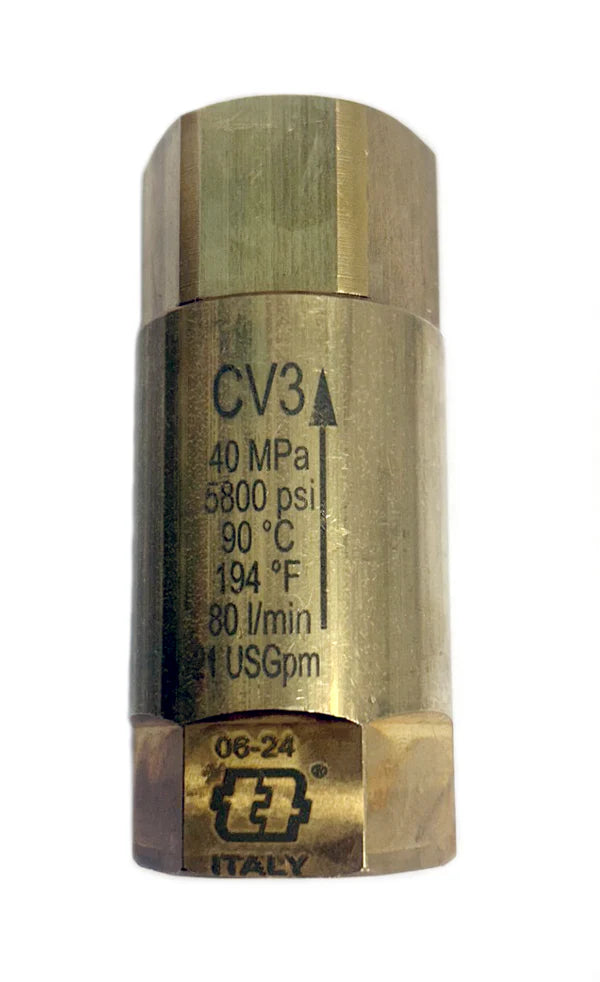

This brass check valve allows flow in one direction only and is rated to 5,800 PSI, so it can be installed on the high-pressure side of a pressure washer. It is used to stop backflow at pumps, injectors, manifolds and hose reel plumbing.
The forged brass body resists corrosion and works from -20°F to 200°F with water and mild cleaning solutions. Choose 3/8" or 1/2" female NPT ports.
Features
- Rated to 5,800 PSI
- Forged brass body
- Female NPT inlet and outlet
- Compact inline design
- Works from -20°F to 200°F
Specifications
| Sizes | 3/8" FNPT (CV3-40038), 1/2" FNPT (CV3-40012) |
|---|---|
| Material | Brass |
| Max pressure | 5,800 PSI |
| Temperature range | -20°F to 200°F |
| Weight | 0.5 lb (3/8"), 0.6 lb (1/2") |
Typical Applications
Pressure washer discharge lines, pump plumbing, chemical injector circuits and high-pressure manifolds.
