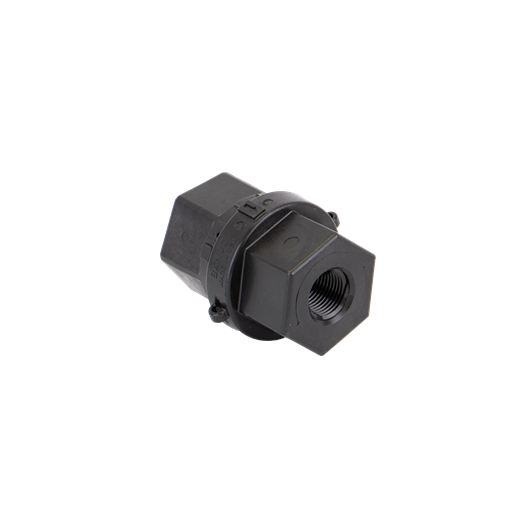

Banjo 1/2" Poly Check Valve, CV050

The Banjo 1/2" standard-port check valve lets fluid flow one way only. It keeps lines primed and stops backflow. It has a 5 lb spring and is rated to 300 PSI maximum.

Banjo fittings are molded from glass-reinforced polypropylene. They resist corrosion and stand up well to the chemicals used in soft washing, including sodium hypochlorite, surfactants and many acids. They are rated for low-pressure use, such as transfer, suction, soft wash and chemical delivery lines, and are not for the high-pressure side of a pressure washer.

Features

• Size: 1/2"
• Spring: 5 lb
• Max pressure: 300 PSI
• Glass-reinforced polypropylene
• Excellent chemical resistance

Specifications

Typical Applications

Soft wash rigs, chemical transfer and mixing, tank plumbing, pump suction lines and agricultural spraying.

Note: Use PTFE tape or a thread sealant compatible with polypropylene. Hand-tighten, then snug lightly. Over-tightening can crack poly threads.
