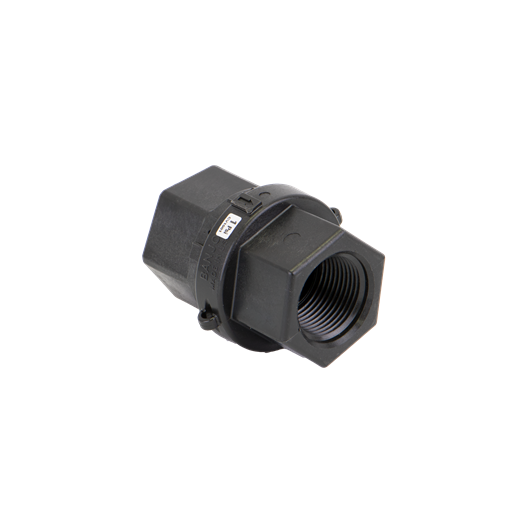

Banjo 1" Poly Check Valve, CV100

The Banjo 1" check valve lets fluid flow in one direction only. This keeps lines primed and stops chemical from backflowing into tanks or pumps. It has a 316 stainless steel spring and an EPDM seal.

Banjo fittings are molded from glass-reinforced polypropylene. They resist corrosion and stand up well to the chemicals used in soft washing, including sodium hypochlorite, surfactants and many acids. They are rated for low-pressure use, such as transfer, suction, soft wash and chemical delivery lines, and are not for the high-pressure side of a pressure washer.

Features

• Size: 1"
• Spring: 316 stainless steel
• Seal: EPDM
• Glass-reinforced polypropylene
• Excellent chemical resistance

Specifications

Typical Applications

Soft wash rigs, chemical transfer and mixing, tank plumbing, pump suction lines and agricultural spraying.

Note: Use PTFE tape or a thread sealant compatible with polypropylene. Hand-tighten, then snug lightly. Over-tightening can crack poly threads.
