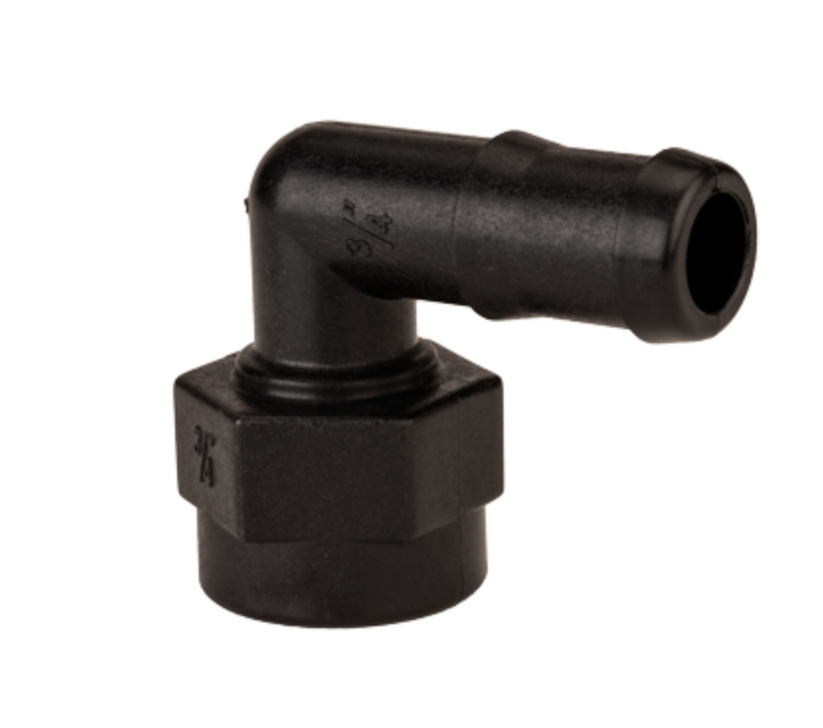

Banjo 3/4" FNPT x 3/4" 90° Poly Hose Barb, HBF075-90

The Banjo 90° female-thread hose barb connects 3/4" ID hose to a 3/4" male NPT fitting at a right angle. Secure the hose with a clamp.

Banjo fittings are molded from glass-reinforced polypropylene. They resist corrosion and stand up well to the chemicals used in soft washing, including sodium hypochlorite, surfactants and many acids. They are rated for low-pressure use, such as transfer, suction, soft wash and chemical delivery lines, and are not for the high-pressure side of a pressure washer.

Features

• Thread: 3/4" FNPT
• Barb: 3/4" hose
• Angle: 90°
• Glass-reinforced polypropylene
• Excellent chemical resistance

Specifications

Typical Applications

Soft wash rigs, chemical transfer and mixing, tank plumbing, pump suction lines and agricultural spraying.

Note: Use PTFE tape or a thread sealant compatible with polypropylene. Hand-tighten, then snug lightly. Over-tightening can crack poly threads.
