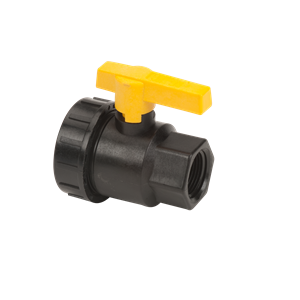

Banjo 3/4" Full Port Single Union Poly Valve, UV075FP

The Banjo 3/4" full-port single union ball valve gives unrestricted flow. The union end lets you remove the valve without cutting the line, and double O-rings in the stem area help prevent leaks.

Banjo fittings are molded from glass-reinforced polypropylene. They resist corrosion and stand up well to the chemicals used in soft washing, including sodium hypochlorite, surfactants and many acids. They are rated for low-pressure use, such as transfer, suction, soft wash and chemical delivery lines, and are not for the high-pressure side of a pressure washer.

Features

• Size: 3/4" x 3/4"
• Port: Full port
• Style: Single union
• Glass-reinforced polypropylene
• Excellent chemical resistance

Specifications

Typical Applications

Soft wash rigs, chemical transfer and mixing, tank plumbing, pump suction lines and agricultural spraying.

Note: Use PTFE tape or a thread sealant compatible with polypropylene. Hand-tighten, then snug lightly. Over-tightening can crack poly threads.
