Hudson
Hudson Float Valve, 1"
Hudson Float Valve, 1"
SKU:HV-1
Couldn't load pickup availability
Product Variation Notice
Product images, specifications, components, colors and packaging are provided for reference and may change without notice due to manufacturer updates or substitutions. The item you receive may differ slightly from the photos or description. Questions? Call us at 352-571-4654.

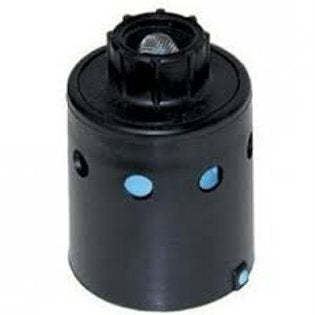

The Hudson 1" float valve (SKU HV-1) uses water pressure, not a lever arm and ball, to close as the tank fills. The compact, self-contained body fits tanks and fill applications where a traditional ball-cock takes too much room or looks messy. Official Hudson specifications list a 1" female thread, 4 to 100 PSI operating pressure, and a 175°F maximum fluid temperature. Height is 5" and diameter is 3.75".
Use it on a soft wash or pressure washing water tank when you want automatic shutoff at the fill line. A 1/2" FPT tank screen on the inlet can help keep grit out of the valve. Local pickup is available in Wildwood, FL, and eligible orders of $125 or more ship free to the lower 48.
- Brand: Hudson
- SKU: HV-1
- Thread: 1" female
- Style: Pressure-actuated float valve (no lever arm or float ball)
- Operating pressure: 4–100 PSI
- Max fluid temperature: 175°F
- Size: 5" height, 3.75" diameter
