Kings KR1A22 22" Aluminum Manual Hose Reel, Stainless Manifold, 5000 PSI
Kings KR1A22 22" Aluminum Manual Hose Reel, Stainless Manifold, 5000 PSI
SKU:KR1A22
Couldn't load pickup availability
Product Variation Notice
Product images, specifications, components, colors and packaging are provided for reference and may change without notice due to manufacturer updates or substitutions. The item you receive may differ slightly from the photos or description. Questions? Call us at 352-571-4654.

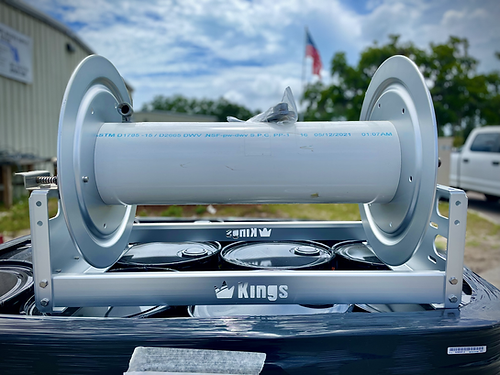

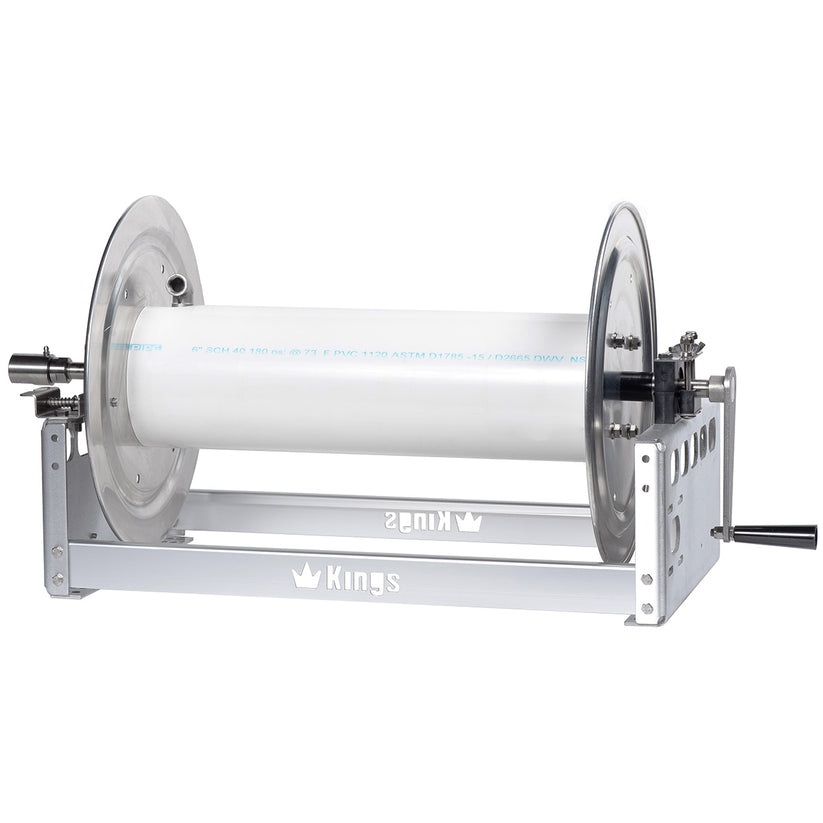

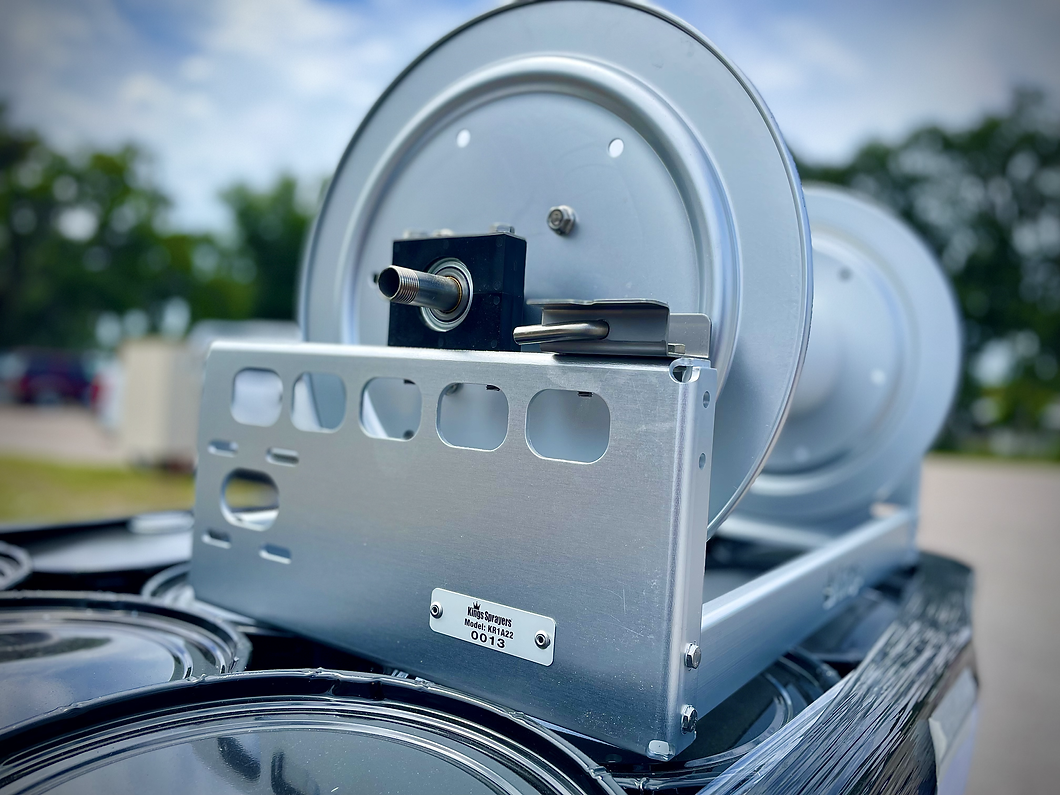

The Kings KR1A22 is a 22" aluminum hose reel with manual hand-crank rewind, built in the USA by Kings Sprayers for pressure washing, soft washing, pest control, landscaping and agricultural spray rigs. A stainless steel manifold and stainless ball-bearing swivel resist corrosion from water and cleaning chemicals, and the reel is rated to 5000 PSI.
With 22" between the discs, it holds 275 to 600 feet of hose depending on ID, including 400 feet of 1/2" ID hose, for crews that need long reach on large properties and commercial sites. 1/2" female NPT connections make it easy to plumb into most trailers, skids and truck setups.
Features
- Manual hand-crank rewind with no power required
- Lightweight, corrosion-resistant aluminum frame

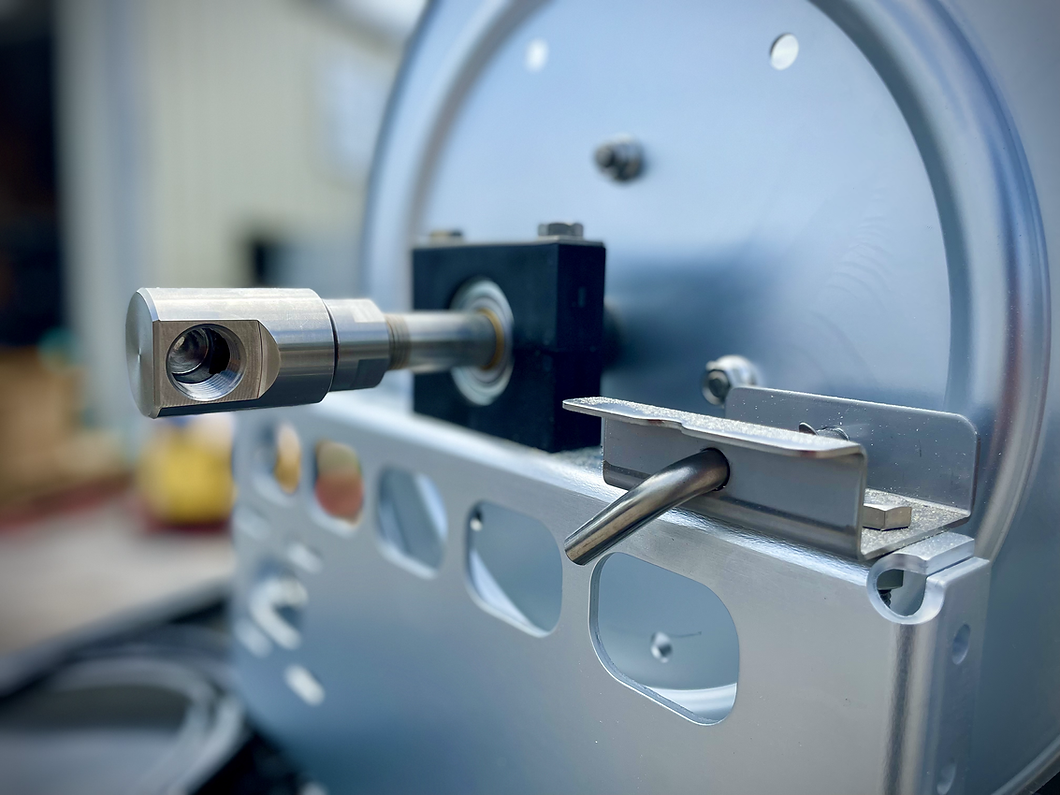

- Stainless steel manifold and 90° ball-bearing stainless swivel
- PVC drum
- Rated to 5000 PSI
- 1/2" female NPT inlet and outlet
- Made in the USA
Specifications
| Brand | Kings Sprayers |
|---|---|
| Model | KR1A22 |
| Rewind | Manual hand crank |
| Construction | Aluminum frame, PVC drum |
| Distance between discs | 22" |
| Inlet | 90° ball-bearing stainless steel swivel, 1/2" female NPT |
| Outlet | 1/2" female NPT |
| Maximum pressure | 5000 PSI |
| Hose size | 1/4" to 5/8" ID |
| Capacity, 1/4" ID hose | 600 ft |
| Capacity, 3/8" ID hose | 500 ft |
| Capacity, 1/2" ID hose | 400 ft |
| Capacity, 5/8" ID hose | 275 ft |
| Approximate weight | 31 lb |
Applications
Pressure washing and soft washing rigs, pest control and lawn spray units, landscaping and agricultural sprayers.
