Mosmatic Surface Cleaner Swivel, 55.153
Mosmatic Surface Cleaner Swivel, 55.153
SKU:55.153
Couldn't load pickup availability
Product Variation Notice
Product images, specifications, components, colors and packaging are provided for reference and may change without notice due to manufacturer updates or substitutions. The item you receive may differ slightly from the photos or description. Questions? Call us at 352-571-4654.

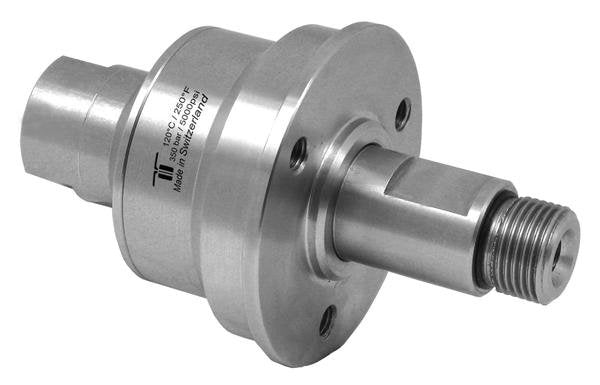

The Mosmatic 55.153 DYCI (DYC) swivel is an all-stainless, high-RPM rotary union for surface cleaners and other self-rotating spray bars. Carbide seals and sealed stainless bearings handle continuous high-speed rotation, and weep holes warn you of seal wear before a full failure.
What it fits
- Mosmatic 20" stainless surface cleaner (80.9055) and other decks with an in-line Mosmatic DYC swivel with 3/8" NPT threads
- Upgrade for many General Pump, BE, Whisper Wash and similar surface cleaners when used with the Mosmatic 55.903 Swivel Conversion Kit (sold separately; deck screws not included)
- Not for cleaners that use the M22-inlet Mosmatic 55.253 (Hotsy/Landa SC21, SC21v, SC40v, Mosmatic FL-PH 520, Lubova) or the G3/8 55.163
Measure before ordering: compare your existing swivel's inlet thread, spray bar thread and mounting to the specs below.
Specifications
| Brand / Series | Mosmatic DYCI |
|---|---|
| Part | 55.153 |
| Inlet | 3/8" NPT female (FNPT) |
| Outlet (spray bar) | 3/8" NPT male (MNPT) |
| Max pressure | 5000 PSI |
| Max temperature | 250°F |
| Max speed | 2000 RPM |
| Body / inner / seal | Stainless / stainless / carbide |
| Bearings | 2 radial ball + 1 thrust ball |
| Size | 2.36" body dia., 2.28" long, 23 oz; wrench flats 0.87" and 0.63" |
| Medium | Water pH 3–12, filtered 10 microns; compressed air to 290 PSI |
Use thread sealant on the threads. Mosmatic does not recommend PTFE tape.
