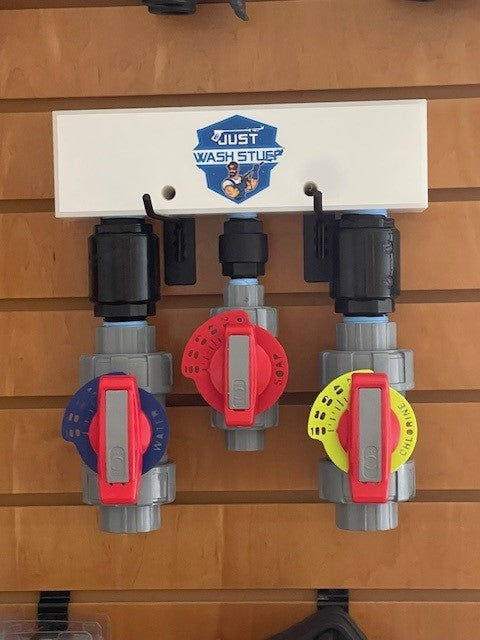

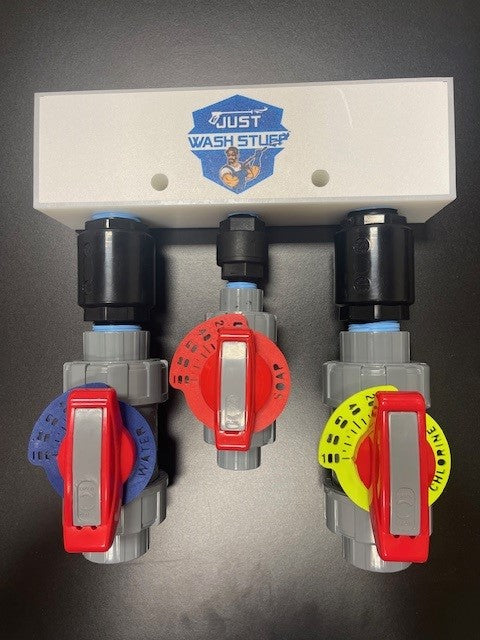

Advanced Soft Wash Proportioner

Introducing our Advanced Soft Wash Metering System, the ultimate solution for precise and efficient distribution of water, soap, and chemicals in your soft washing setup. This system empowers operators with complete control over the mixing ratios, ensuring optimal performance for every job.

Key Features:

• CPVC Chlorine-Resistant Plastic: Designed to withstand harsh chemicals and environments.
• NPT True Union Connections: Allows for easy maintenance and secure connections.
• Viton Seals: Ensures leak-free operation and durability, even in high chemical exposure.
• 30° V-Bore Valve & Jumbo % Precision Dial: Provides accurate flow control, allowing operators to precisely adjust water, chlorine, and surfactant inputs.
• Pressure Capabilities: Handles pressures up to 235 PSI, making it ideal for a wide range of soft washing applications.

Complete Assembly Includes:

• 3 precision metering valves for water, chlorine, and surfactant inputs
• 3 check valves to prevent backflow
• A robust manifold block with Male x Male NPT Connections

Enhanced Durability:

• Polypropylene & CPVC Construction: Offers resistance to chlorine, UV rays, and industrial-grade chemicals, ensuring longevity.
• Stainless Steel Valve & Spring: Built to handle pressures up to 150 PSI with crack pressure ranging from 1/3 PSI to 3 PSI.

Fewer Leak Points: Engineered with 6 fewer leak points to ensure a reliable, leak-free operation.

Convenient Outputs: Includes NPT Threads, an Output Port, and a Bypass Port for versatile connections.

Built for industrial use, this metering system is designed to excel in challenging conditions, delivering high performance and reliability for soft washing professionals.

Metering Valves:
3 individual metering valves dedicated to water, chlorine, and soap
Constructed from high-quality CPVC plastic for durability and chemical resistance
30° V-Bore Valve design and Jumbo % Precision Dial for unparalleled control and accuracy
Labeled and color-coded for easy identification and adjustment

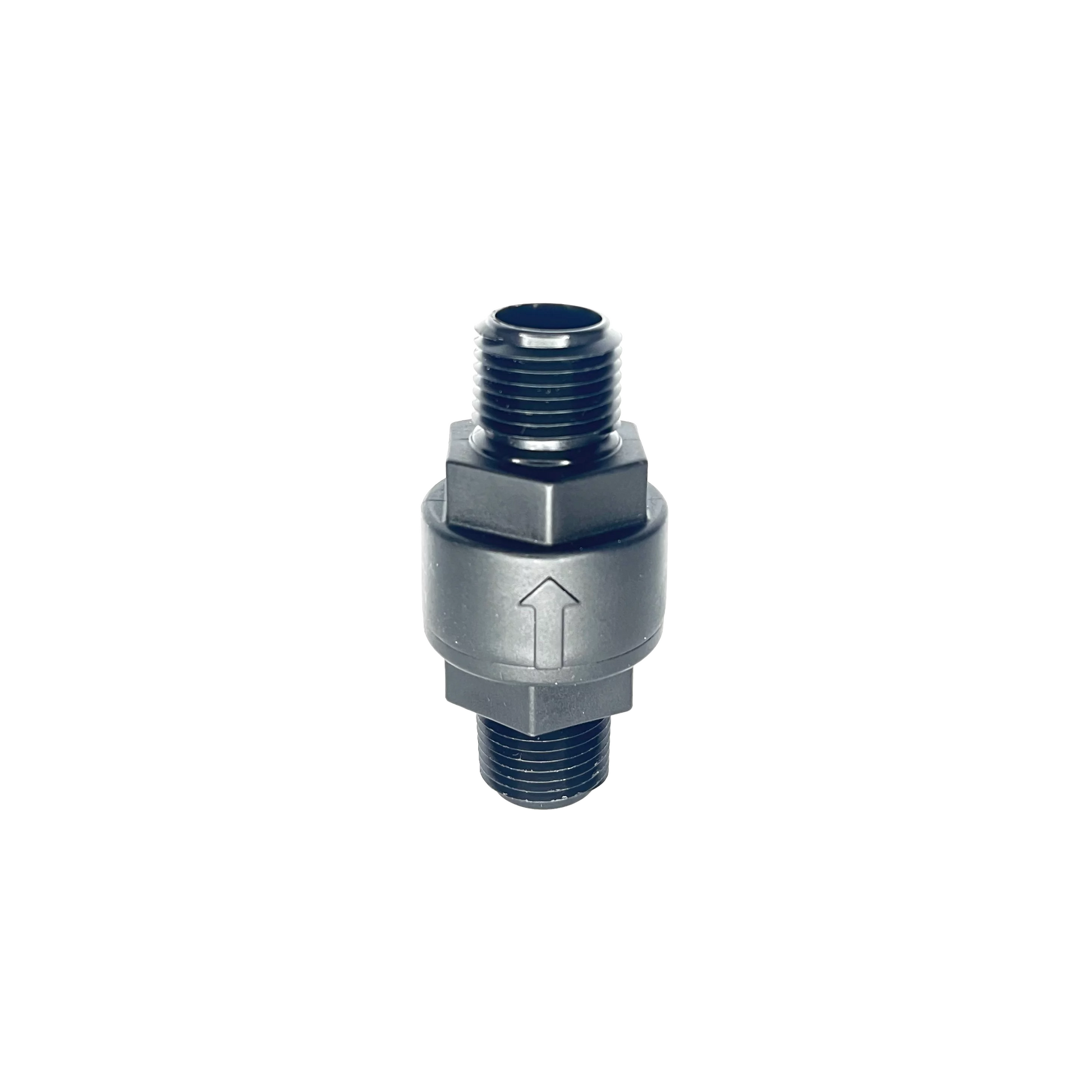

Check Valves:
3 check valves with innovative male-to-male connections
Eliminates the need for additional fittings, reducing potential leak points by 6
Compact and cost-effective design minimizes component failure risk
Ensures reliable operation and long-lasting performance

Manifold Block:
Constructed from UHMWPE plastic for exceptional strength and durability
Resistant to chemicals, abrasion, and UV radiation
Ideal for handling corrosive soft washing chemicals
Streamlined design for easy integration into any soft wash system

This proportioner sets itself apart with its user-friendly design and attention to detail. The compact and streamlined layout makes it easy to integrate into any soft wash system, saving space and simplifying installation.

Available in 1/2″, 3/4″, and 1″ sizes, our proportioners can accommodate various soft washing setups. Before ordering, please refer to the size chart listed below to ensure you select the appropriate size proportioner for your system.

Upgrade your soft washing system with the Soft Wash Proportioner and experience the benefits of precise chemical mixing, durability, and user-friendly design. Order now and revolutionize your soft washing operations for maximum efficiency and profitability!

The 1/2" Proportioner consists of 3, 1/2" Metering &
Check Valves and a manifold block with a 1/2" output
and 1/2" bypass port.

The 3/4" Proportioner consists of 2 x 3/4" Metering &
Check Valves for water and chlorine, 1 x 1/2" Metering
& Check Valve for surfactant, and a manifold block with
a 1" output and 1" bypass port.

The 1" Proportioner consists of 2 x 1" Metering & Check
Valves for water and chlorine, 1 x 1/2" Metering &
Check Valve for surfactant, and a manifold block with a
1" output and 1" bypass port.
