Part #: V075SL

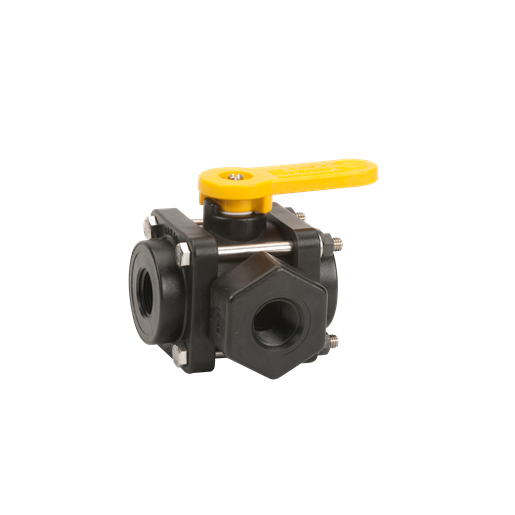

Description: ¾" 3-Way Side Load Valve

Family: Valves
Type: 3 Way
Style: Side Load
Size: ¾"
Weight 1.35 lbs

Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats.
FKM seals.
Maximum operating pressure 200 psi
Precision molded in polypropylene. Polypro­py­lene is reinforced with fiber­glass for additional strength.
PTFE self-lubricating stem bushings and seats.
Self-aligning ball moves freely against the PTFE seats for smooth operation.
Stainless steel bolts.
