XJet M5 End of the Line Injection System

XJet M5 End of the Line Injection System  SKU: XJETM5-09K

15ft of hose and 14 color-coded chemical proportions.

#9 Orifice 3-3.5 GPM Machines

Keep chemicals out of your power washer, and control spray angle with just a twist, with the XJETM5 nozzle!

This easy to use item attaches to both your pressure washer wand and its own special X-Jet suction hose (included). As pressurized water exits your spray lance, through the X-Jet nozzle, the suction hose draws and proportions the appropriate amount of chemical from a separate tank. The mixing happens in the nozzle! Simply twist the X-Jet M5 to change spray patterns from 5° to 60°, without the need for multiple tips.

Dimensions: 5.38" x 1.25" x 2.38"

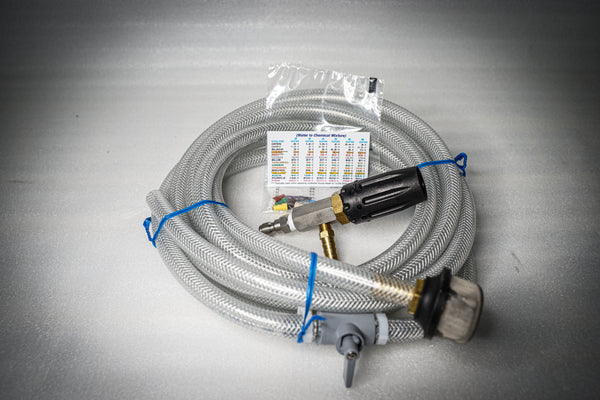

Includes:

15-foot X-Jet Suction Hose with hose barb
Twist-adjust M5 nozzle for spray patterns between 5° and 60°
Quick connect plug
15-piece color-coded proportioner tip set
Shut off ball valve
Mushroom strainer


Additional specifications:

Fully adjustable spray patterns
Maximum pressure: 4000 PSI
Maximum temperature: 190° F
Inlet: 1/4" quick connect plug
Chemical port: 1/8" MPT x 3/8" hose barb
Projects chemicals up to 40 feet or more depending on pressure washer
Apply soap and rinse with the same nozzle - just remove the chemical suction tube
Great for power washing houses and other residential pressure washing tasks!


Weight: 4 lbs.
